Expose your local service to public: Ngrok, FRP, localtunnel & Others

For many IT workers remotely involved with networking, it is quite common to need to expose your Intranet application to the outside world in a secured manner. Unfortunately, we work most of the time from private IP networks, be that at the workplace, at home or at the coffee shop. The router(s) or firewall (s) that stands between our workstation and the internet makes it harder to expose a local socket to the outside. Most of the time, this is preferable for security.
 A couple of solutions you can choose now:
1. Change your router / firewall configuration to do port forwarding or NAT from public to your application. But in many cases, you wont be able to make that changes or you even do not have that options.
2. Tunneling services : either self hosting or cloud services such as:

• Ngrok
• FRP
• Localtunnel
• Piggy
• Others

This post is going to explore some of tunneling services I am using.

Ngrok

Ngrok

Setup & Installation
1. Download ngrok
ngrok is easy to install. Download a single binary with zero run-time dependencies. There are following versions available to download : Winodws, Mac OS X Linux Mac (32-bit) Windows (32-bit)Linux (ARM) Linux (32-bit) FreeBSD (64-Bit)FreeBSD (32-bit)

Note: Windows Ngrok is a command line tool. You will need to unzip it into a folder then use it from command line.

2. Unzip to install

On Linux or OSX you can unzip ngrok from a terminal with the following command. On Windows, just double click ngrok.zip.

$ unzip /path/to/ngrok.zip

Most people keep ngrok in their user folder or set an alias for easy access.

3. Connect your account

Running this command will add your account's authtoken to your ngrok.yml file. This will give you more features and all open tunnels will be listed here in the dashboard.

$ ./ngrok authtoken ad7FeWDimD3GTj1Hqkh7_m3BRJfhTyqfiZbBV8dAJ

Following screenshots are captured from Windows OS.

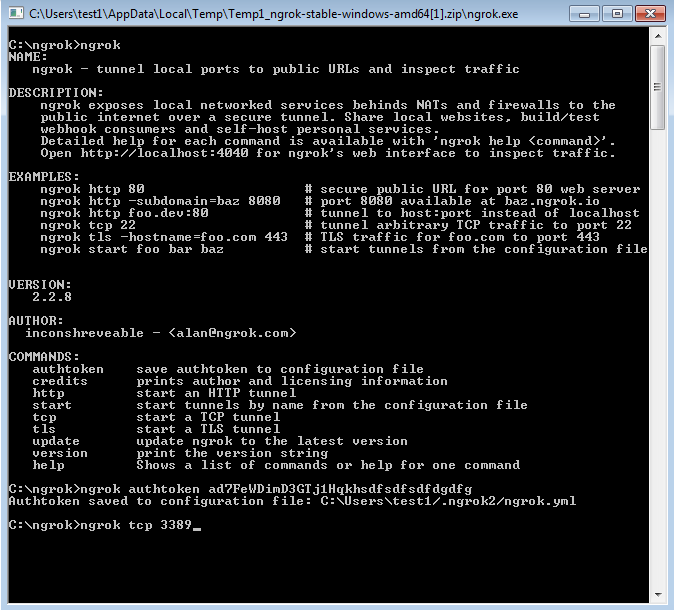

Windows Command line ngrok commands

Ngrok connection forwarding to localhost 3389 (Windows Remote Desktop Service)

4. Fire it up

Read the documentation on how to use ngrok. Try it out by running it from the command line:

$ ./ngrok help

To start a HTTP tunnel on port 80, run this next:

$ ./ngrok http 80

5. Expose a local webserver

Once you've started a local webserver, fire up ngrok by pointing it to the port where your local server is running:

$ ./ngrok http 80

The output will list a forwarding URL, which will point to your local server. You'll also see any active tunnels listed on the status page.

Note: free ngrok accounts receive a random URL each time a tunnel is started. Upgrade for other options. Starting ngrok normally will generate a URL with a random subdomain (e.g. abc123.ngrok.io) for your tunnel. However, upgraded accounts can configure reserved ngrok.io subdomains so they're only available for use by their account. They can also enable custom domains to forward to their ngrok tunnels with CNAME records.

6. Setup a configuration file

If you regularly run tunnels with the same feature flags, you might wish to set defaults. No worries! Add all your tunnel settings to ngrok's configuration file (created when you added your authtoken). Once setup, you'll be able to fire up ngrok like this:

$ ./ngrok start demo

Here's a small configuration file example:

authtoken: ad7FeWDimD3GTj1Hqkh7_m3BRJfhTyqfiZbBV8dAJ

region: us
console_ui: true
web_addr: localhost:4040

tunnels:
  demo:
    proto: http
    addr: 9090
    hostname: demo.mysite.com
    inspect: false
    auth: "demo:secret"

Youtube Video for all steps in Windows 7 :

FRP (Fast Reverse Proxy)

FRP (Fast Reverse Proxy)


What is frp?
frp is a fast reverse proxy to help you expose a local server behind a NAT or firewall to the internet. Now, it supports tcp, udp, http and https protocol when requests can be forwarded by domains to backward web services.

1. Deploy frps at server side.

cd
wget https://github.com/fatedier/frp/releases/download/v0.21.0/frp_0.21.0_linux_amd64.tar.gz
tar -xzvf frp_0.21.0_linux_amd64.tar.gz
cd frp_0.21.0_linux_amd64

Edit server configuration ini file：

vi frps.ini

enter following information：

[common]
bind_port = 8000
token = 'your password'

start frps service with new configuration：

./frps -c ./frps.ini

Once successfully started service, following information will show in your terminal window：

[root@testserver1 frp 0.21.0_1inux_amd64]# ./frps -c ./frps.ini
2018/11/25 19:20:00 [I] [service.go:130] frps tcp listen on 0.0.0.0:8000
2018/11/25 19:20:00 [I] root.:o:207 Start fris success

You can use screen to run this task in the backgroud：

yum -y install screen
screen -S frp
./frps -c ./frps.ini

2. Install Windows Client frpc

Download Windows Client release from https://github.com/fatedier/frp/releases

Windows zip file name is frp_0.21.0_windows_386.zip (32bit) or frp_0.21.0_windows_amd64.zip (64bit). Download address :

• https://github.com/fatedier/frp/releases/download/v0.21.0/frp_0.21.0_windows_386.zip
• https://github.com/fatedier/frp/releases/download/v0.21.0/frp_0.21.0_windows_amd64.zip

Edit client side configuration file frpc.ini

Enter following information：

[common]
server_addr = server public IP
server_port = 8000
token = "your password which is same as server side"

[testssh]
type = tcp
local_ip = 127.0.0.1
local_port = 2222
remote_port = 16316

This configuration means when we access our public ip's 16316 port, it will forward the access to local computer's 2222 port.

Start frpc service from CMD window:

frpc.exe -c frpc.ini

Once successfully launched this service, we will get following feedback from CMD window:

$ ./frpc -c ./frpc.ini
2018/11/25 12:21:23 [I] [proxy_manager.go:284] proxy removed: []
2018/01/25 12:21:23 [I] [proxy_manager.go:294] proxy added: [testssh]
2018/01/25 12:21:23 [I] [proxy_manager.go:317] visitor removed: []
2018/01/25 12:21:23 [I] [proxy_manager.go:326] visitor added: []
2018/01/25 12:21:23 [I] [control.go:240] [3b123131341cb] login to server success, get run id [3b123131341cb], server udp port [0]
2018/01/25 12:21:23 [I] [control.go:165] [3b123131341cb] [ssh] start proxy success

On the server side, you will see following messages as well:

2018/08/14 19:29:14 [I] [service.go:319] client login info: ip[3b123131341cb] version [0.21.0] hostname [] os [windows] arch [amd64]
2018/08/14 19:29:14 [I] [service.go:217] [3b123131341cb] [testssh] tcp proxy listen port [16316]
2018/08/14 19:29:14 [I] [control.go:335] [3b123131341cb] new proxy [testssh] success

So, FRP deployment is completed. Internal host's 2222 port has been successfully exposed to Internet.

Localtunnel.me

Localtunnel allows you to easily share a web service on your local development machine without messing with DNS and firewall settings.

Localtunnel will assign you a unique publicly accessible url that will proxy all requests to your locally running webserver.

Install Localtunnel globally (requires NodeJS) to make it accessible anywhere:

npm install -g localtunnel

Start a webserver on some local port (eg http://localhost:8000) and use the command line interface to request a tunnel to your local server:

lt --port 8000

You will receive a url, for example https://gqgh.localtunnel.me, that you can share with anyone for as long as your local instance of lt remains active. Any requests will be routed to your local service at the specified port.

Piggy

pinggy.io

Pinggy is the easiest way to get public URLs for your localhost. You can use it to quickly host a website from your laptop, receive webhooks, share files, connect to your Raspberry Pi, and more.

Follow the three simple steps to get started:

Step 1: Run your service in localhost

First you need to run the service you want to share in localhost. For example you may be using a webserver like Apache. Make sure your service is available in a localhost URL such as http://localhost:8080.

You can quickly launch such a server for testing purposes using Python: python3 -m http.server . This will start a server at http://localhost:8000.

Step 2: Create a tunnel using a single command

ssh -p 443 -R0:localhost:8000 a.pinggy.io

Replace the port 8000 with the localhost port where your service is running.

Step 3: Access through public URL

The above command will provide you http and https URLs as follows:

You can access local server via following URL(s):
http://fakqxzqrohxxx.a.pinggy.online
https://fakqxzqrohxxx.a.pinggy.online

You can access your localhost service using these URLs.

Other Tools

(From: Neurohazard & https://tlanyan.me/frp-tunnel-tutorial/)

1. TeamViewer： (可免费使用情况下,属于性能较好的解决方案, UAC穿透能力弱)
   (tv 在 server 上要 licence，，而且 tv 最大的缺点是更新频繁，低版本高版本混用，闹心~在 win10 上也容易被 uac 卡住，，目前能穿透 uac 的，只有 xt800 了)
2. Anydesk
3. Citrix gotomypc (面向企业级用户,无社区版,体验良好,微软的远程桌面功能mstsc一部分是向Citrix购买的)
4. Gotoassist
5. VNC
6. PCAnywhere
7. kdt
8. xt800
9. splashtop
10. uvnc
11. RealVNC
12. 花生壳/向日葵： (Windows还行, Linux糟糕)
13. SAKURA FRP：基于frp的免费内网穿透工具，也有收费服务。对于这家的行为，网民褒贬不一。如果你没有自己的服务器，可以尝试一下这家。
14. V2ray：V2ray是一个功能强大的网络平台，提供代理、反向代理、内网穿透等功能。
15. ZeroTier：号称零配置的内网穿透工具，提供与企业 SDN 交换机同等的高级网络虚拟化和管理功能，可以跨本地和广域网连接任何设备和程序。然而由于ZeroTier的服务器在国外，国内连接速度经常很感人，需要自行搭建Moon来解决；
16. ngrok：ngrok 也是很知名的内网穿透工具，自从2.x版本不再开源，名气在下降。ngrok官网也提供免费穿透隧道，但国内连接速度较慢。NATAPP、Sunny-Ngrok等工具基于ngrok二次开发而来；
17. NPS : a lightweight, high-performance, powerful intranet penetration proxy server, with a powerful web management terminal.
