Wednesday, April 10, 2024

Azure Sentinel Onboarding Log Sources

After you onboard Microsoft Sentinel into your workspace, use data connectors to start ingesting your data into Microsoft Sentinel. Microsoft Sentinel comes with many out of the box connectors for Microsoft services, which integrate in real time. For example, the Microsoft Defender XDR connector is a service-to-service connector that integrates data from Office 365, Microsoft Entra ID, Microsoft Defender for Identity, and Microsoft Defender for Cloud Apps.

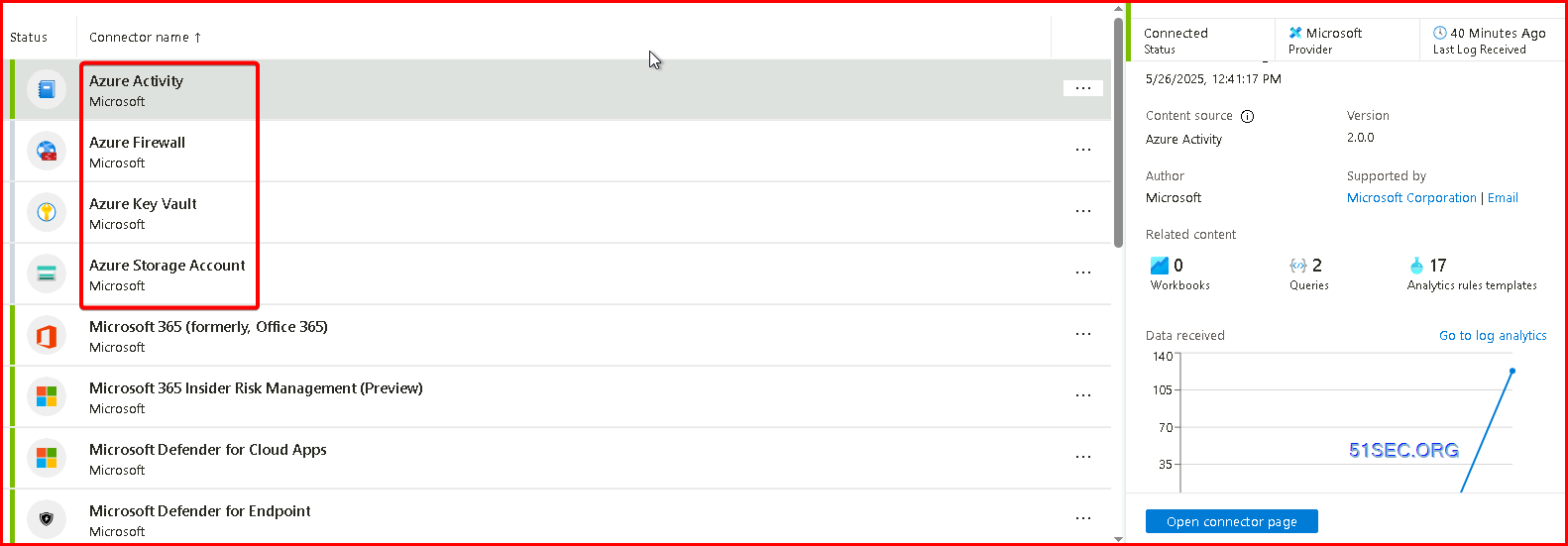

Built-in connectors enable connection to the broader security ecosystem for non-Microsoft products. For example, use Syslog, Common Event Format (CEF), or REST APIs to connect your data sources with Microsoft Sentinel.


Microsoft Sentinel solutions provide packaged security content, including data connectors, workbooks, analytics rules, playbooks, and more. When you deploy a solution with a data connector, you get the data connector together with related content in the same deployment.


Azure Arc - Add On-Prem Machine


Add on-prem machine into Azure Arc:

Add a server with Azure Arc

Download or Copy / Paste the code into Linux or Windows machine to run.

It will download the installation package, then install the downloaded hybrid agent, eventually run the connect command to connect to ARC portal.



try {
    $env:SUBSCRIPTION_ID = "d9fzzzz-zzz-zz-zzzz-zzzzzb9";
    $env:RESOURCE_GROUP = "RG-SERVERS";
    $env:TENANT_ID = "adfd-dfdfd-dfdfd-dfdfd-dfdfdf";
    $env:LOCATION = "eastus";
    $env:AUTH_TYPE = "token";
    $env:CORRELATION_ID = "yyy980-dfd-ad--fdsafd-fd-fdf-dfdfd";
    $env:CLOUD = "AzureCloud";

    [Net.ServicePointManager]::SecurityProtocol = [Net.ServicePointManager]::SecurityProtocol -bor 3072;
    # Download the installation package
    Invoke-WebRequest -UseBasicParsing -Uri "https://aka.ms/azcmagent-windows" -TimeoutSec 30 -OutFile "$env:TEMP\install_windows_azcmagent.ps1";
    # Install the hybrid agent
    & "$env:TEMP\install_windows_azcmagent.ps1";
    if ($LASTEXITCODE -ne 0) { exit 1; }
    # Run connect command
    & "$env:ProgramW6432\AzureConnectedMachineAgent\azcmagent.exe" connect --resource-group "$env:RESOURCE_GROUP" --tenant-id "$env:TENANT_ID" --location "$env:LOCATION" --subscription-id "$env:SUBSCRIPTION_ID" --cloud "$env:CLOUD" --correlation-id "$env:CORRELATION_ID";
}
catch {
    $logBody = @{subscriptionId="$env:SUBSCRIPTION_ID";resourceGroup="$env:RESOURCE_GROUP";tenantId="$env:TENANT_ID";location="$env:LOCATION";correlationId="$env:CORRELATION_ID";authType="$env:AUTH_TYPE";operation="onboarding";messageType=$_.FullyQualifiedErrorId;message="$_";};
    Invoke-WebRequest -UseBasicParsing -Uri "https://gbl.his.arc.azure.com/log" -Method "PUT" -Body ($logBody | ConvertTo-Json) | out-null;
    Write-Host  -ForegroundColor red $_.Exception;
}

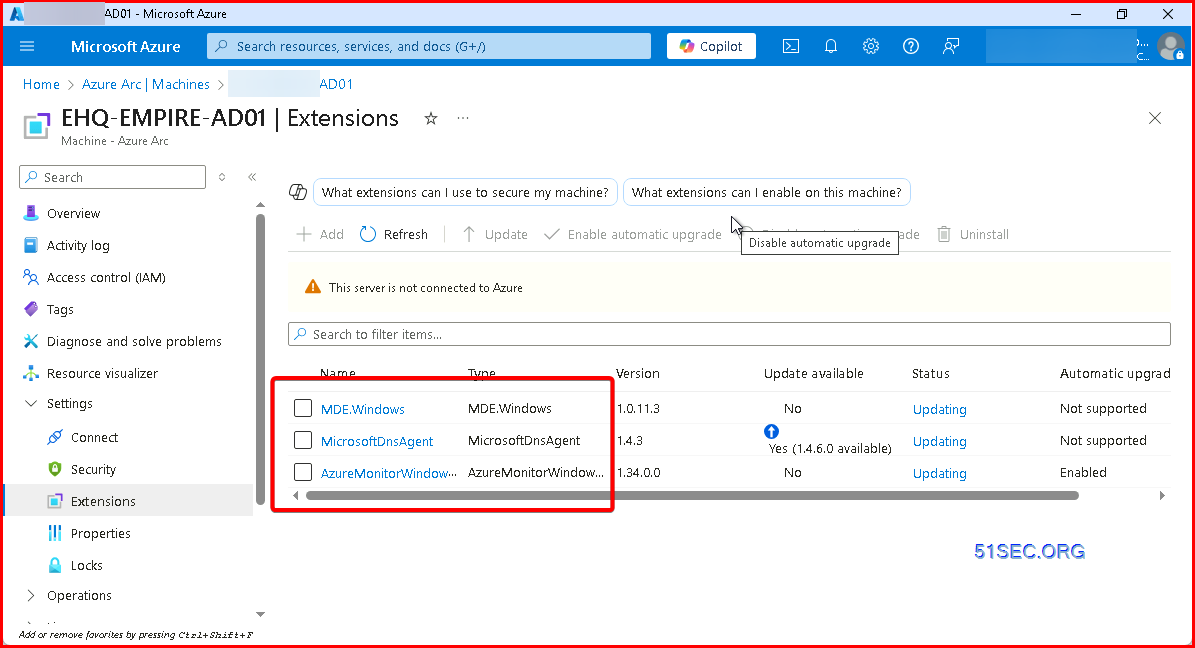

Install Extenstion (AMA)


Edit Windows Security Events via AMA connector, add Data Collection Rule for your resources:



Linux Syslog

1. Onboraded it through Azure ARC by running script
2. install syslog solution from Conetent Hub in Microsoft Sentinel
3. Configure  / Create Data Collection Rule in Syslog via AMA data connector

4. Enable Log_USER, LOG_AUTH, LOG_AUTHPRIV, LOG_CRON , but not LOG_SYSLOG


Configure / Deploy Linux Syslog Forwarder


Diagram of Syslog collection from single source.





To ingest Syslog and CEF logs into Microsoft Sentinel, particularly from devices and appliances onto which you can't install the Log Analytics agent directly, you'll need to designate and configure a Linux machine that will collect the logs from your devices and forward them to your Microsoft Sentinel workspace. This machine can be a physical or virtual machine in your on-premises environment, an Azure VM, or a VM in another cloud.

This machine has two components that take part in this process:

  • A syslog daemon, either rsyslog or syslog-ng, that collects the logs.
  • The Log Analytics Agent (also known as the OMS Agent), that forwards the logs to Microsoft Sentinel.

Using the link provided below, you will run a script on the designated machine that performs the following tasks:

  • Installs the Log Analytics agent for Linux (also known as the OMS agent) and configures it for the following purposes:

    • listening for CEF messages from the built-in Linux Syslog daemon on TCP port 25226
    • sending the messages securely over TLS to your Microsoft Sentinel workspace, where they are parsed and enriched
  • Configures the built-in Linux Syslog daemon (rsyslog.d/syslog-ng) for the following purposes:

    • listening for Syslog messages from your security solutions on TCP port 514
    • forwarding only the messages it identifies as CEF to the Log Analytics agent on localhost using TCP port 25226

Pre-requisites

Each data connector has its own set of prerequisites. Prerequisites might include that you must have specific permissions on your Azure workspace, subscription, or policy. Or, you must meet other requirements for the partner data source you're connecting to.

Prerequisites for each data connector are listed on the relevant data connector page in Microsoft Sentinel.

Install the product solution from the Content Hub in Microsoft Sentinel. If the product isn't listed, install the solution for Common Event Format.


Note

  • A single log forwarder machine with the above hardware configuration and using the rsyslog daemon has a supported capacity of up to 8500 events per second (EPS) collected.

Finding your Log Analytics workspace ID and primary key
  • Open Log Analytics Workspace.
  • Select the workspace you've just connected to Microsoft Sentinel.
  • Select Settings - Agents




Change Ubuntu Ip from DHCP to Static


For ip address: ip a
For Gateway: ip r
For DNS: In Ubuntu 18.04 and 20.04 you can use systemd-resolve --status. In newer versions use resolvectl status.

or using nmcli command, you might need to install it first.
nmcli conn modify "System eth0" ipv4.ignore-auto-dns yes
nmcli conn modify "System eth0" ipv4.dns  "192.168.24.7 8.8.8.8"
systemctl restart NetworkManager

Add a super user in:

adduser test1
usermod -aG sudo test1
su - test1
sudo -i
sudo ls -la /root/

Meraki and Citrix vCenter

Since both are not using Azure Monitor Agent (AMA or MMA) to collect logs, and using Operation Management Suite (OMS) for it, I am putting both configuration steps in this section:

1 Install OMS agent


Download and install it in Linux Syslog Forwarder




root@NSTEST-syslog:~# wget https://raw.githubusercontent.com/Microsoft/OMS-Agent-for-Linux/master/installer/scripts/onboard_agent.sh && sh onboard_agent.sh -w fe23134c-431b-4d69-8b3e-138943bb757f -s l6Ls25g1rIskJXIeTyoMi2LfMhlm3BeoSUljmHzb86QbrBOCBYfVwEysnccbDORA0Nq3eKXEK5fLgeqQ5EVaKg== -d opinsights.azure.com

--2024-03-25 15:30:17--  https://raw.githubusercontent.com/Microsoft/OMS-Agent-for-Linux/master/installer/scripts/onboard_agent.sh

Resolving raw.githubusercontent.com (raw.githubusercontent.com)... 185.199.111.133, 185.199.108.133, 185.199.109.133, ...

Connecting to raw.githubusercontent.com (raw.githubusercontent.com)|185.199.111.133|:443... connected.

HTTP request sent, awaiting response... 200 OK

Length: 3848 (3.8K) [text/plain]

Saving to: ‘onboard_agent.sh’


onboard_agent.sh    100%[===================>]   3.76K  --.-KB/s    in 0s


2024-03-25 15:30:17 (95.9 MB/s) - ‘onboard_agent.sh’ saved [3848/3848]


--2024-03-25 15:30:17--  https://github.com/microsoft/OMS-Agent-for-Linux/releases/download/OMSAgent_v1.19.0-0/omsagent-1.19.0-0.universal.x64.sh

Resolving github.com (github.com)... 140.82.114.3

Connecting to github.com (github.com)|140.82.114.3|:443... connected.

HTTP request sent, awaiting response... 302 Found

Location: https://objects.githubusercontent.com/github-production-release-asset-2e65be/43709699/86dbf012-12fc-49da-b79e-3301ce03d004?X-Amz-Algorithm=AWS4-HMAC-SHA256&X-Amz-Credential=AKIAVCODYLSA53PQK4ZA%2F20240325%2Fus-east-1%2Fs3%2Faws4_request&X-Amz-Date=20240325T153018Z&X-Amz-Expires=300&X-Amz-Signature=2a97a2aa8938b47de1e179bd20a74fe323ff6183397ca581374aa863182ebfcf&X-Amz-SignedHeaders=host&actor_id=0&key_id=0&repo_id=43709699&response-content-disposition=attachment%3B%20filename%3Domsagent-1.19.0-0.universal.x64.sh&response-content-type=application%2Foctet-stream [following]

--2024-03-25 15:30:18--  https://objects.githubusercontent.com/github-production-release-asset-2e65be/43709699/86dbf012-12fc-49da-b79e-3301ce03d004?X-Amz-Algorithm=AWS4-HMAC-SHA256&X-Amz-Credential=AKIAVCODYLSA53PQK4ZA%2F20240325%2Fus-east-1%2Fs3%2Faws4_request&X-Amz-Date=20240325T153018Z&X-Amz-Expires=300&X-Amz-Signature=2a97a2aa8938b47de1e179bd20a74fe323ff6183397ca581374aa863182ebfcf&X-Amz-SignedHeaders=host&actor_id=0&key_id=0&repo_id=43709699&response-content-disposition=attachment%3B%20filename%3Domsagent-1.19.0-0.universal.x64.sh&response-content-type=application%2Foctet-stream

Resolving objects.githubusercontent.com (objects.githubusercontent.com)... 185.199.110.133, 185.199.111.133, 185.199.108.133, ...

Connecting to objects.githubusercontent.com (objects.githubusercontent.com)|185.199.110.133|:443... connected.

HTTP request sent, awaiting response... 200 OK

Length: 250004251 (238M) [application/octet-stream]

Saving to: ‘omsagent-1.19.0-0.universal.x64.sh’


omsagent-1.19.0-0.u 100%[===================>] 238.42M   104MB/s    in 2.3s


2024-03-25 15:30:20 (104 MB/s) - ‘omsagent-1.19.0-0.universal.x64.sh’ saved [250004251/250004251]


Extracting OMS agent install bundle...

----- Upgrading package omi to version (omi-1.8.1-0.ulinux.s.x64) -----

Detected OpenSSL version 3.0.2 set as system default.

Install/Upgrade will use package(s) from OMS bundle installer's 300 openssl directtory.

Selecting previously unselected package omi.

(Reading database ... 74617 files and directories currently installed.)

Preparing to unpack .../omi-1.8.1-0.ulinux.s.x64.deb ...

Creating omiusers group ...

Creating omi group ...

Creating omi service account ...

Unpacking omi (1.8.1.0) ...

Setting up omi (1.8.1.0) ...

.......+.....+...+.+...+......+..+++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++*...+..+...+.........+...+.+...........+...+++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++*.........+....+......+...+..+......+.......+........+.......+..+.........+............+.........+.........+....+...+...............+...+..............+......+....+...+..+......+.+...............+........+.+......+...+..+......+....+...+..+......+..........+.....+.......+...............+.....+.+.....+.+.....+...................+.....+......+.............+...+...+............+..+...+.......+..+...+.+++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++

..+..+.............+.....+...+.+..................+......+++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++*....+++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++*..+...+.....+......................+..+.+.........+.....+...+...+.+...+..+....+............+...+..+....+...+..+...+...+...+.+......+..+.+.........+..+....+............+...+++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++

-----

2024-03-25 15:30:22 : Crontab not configured to update omi keytab automatically. Skip unconfigure

ktutil not found

Checking if cron is installed...

Checking if cron/crond service is started...

Set up a cron job to OMI logrotate every 15 minutes

Configuring OMI service ...

Created symlink /etc/systemd/system/multi-user.target.wants/omid.service → /lib/systemd/system/omid.service.

Trying to start omi with systemctl

omi is started.

Trying to stop omi with systemctl

omi is stopped.

Trying to start omi with systemctl

omi is started.

----- Upgrading package scx to version (scx-1.8.1-0.universal.s.x64) -----

Detected OpenSSL version 3.0.2 set as system default.

Install/Upgrade will use package(s) from OMS bundle installer's 300 openssl directtory.

Selecting previously unselected package scx.

(Reading database ... 74680 files and directories currently installed.)

Preparing to unpack .../scx-1.8.1-0.universal.s.x64.deb ...

Unpacking scx (1.8.1.0) ...

Setting up scx (1.8.1.0) ...

Generating certificate with hostname="NSTEST-syslog"

Trying to stop omi with systemctl

omi is stopped.

Trying to start omi with systemctl

omi is started.

----- Upgrading package omsagent to version (omsagent-1.19.0-0.universal.x64) -----

Detected OpenSSL version 3.0.2 set as system default.

Install/Upgrade will use package(s) from OMS bundle installer's 300 openssl directtory.

Selecting previously unselected package omsagent.

(Reading database ... 74725 files and directories currently installed.)

Preparing to unpack .../omsagent-1.19.0-0.universal.x64.deb ...

Creating omsagent group ...

Creating omsagent service account ...

Creating nxautomation group ...

Creating nxautomation service account ...

Unpacking omsagent (1.19.0.0) ...

Setting up omsagent (1.19.0.0) ...

-e info Reading onboarding params from: /etc/omsagent-onboard.conf

Workspace 000000-1111-222222222-3333333333 already onboarded and agent is running.

Symbolic links have not been created; re-onboarding to create them

info    Generating certificate ...

-e info Agent GUID is 8a69e647-7047-434f-b3ad-79707c5945c4

-e info Onboarding success

Configure syslog...

Configuring rsyslog for OMS logging

Restarting service: rsyslog

Configure heartbeat monitoring agent...

Configure log rotate for workspace 000000-1111-222222222-3333333333...

INFO:  Configuring OMS agent service 000000-1111-222222222-3333333333 ...

-e error        MetaConfig generation script not available at /opt/microsoft/omsconfig/Scripts/python3/OMS_MetaConfigHelper.py. For more details check logs in /var/opt/microsoft/omsconfig/omsconfig.log

Trying to stop omi with systemctl

omi is stopped.

Trying to start omi with systemctl

omi is started.

Configure log rotate for workspace 000000-1111-222222222-3333333333...

Applying Syslog conf hotfix...

Removing omsconfig package as part of upgrade

----- Removing package: omsconfig -----

dpkg: warning: ignoring request to remove omsconfig which isn't installed

----- Upgrading package omsconfig to version (omsconfig-1.3.0-0.x64) -----

Detected OpenSSL version 3.0.2 set as system default.

Install/Upgrade will use package(s) from OMS bundle installer's 300 openssl directtory.

Selecting previously unselected package omsconfig.

(Reading database ... 84211 files and directories currently installed.)

Preparing to unpack 300/omsconfig-1.3.0-0.x64.deb ...

Using python3

Cleanning up existing dsc_hosts...

chmod: cannot access '/opt/dsc': No such file or directory

Deployment operation type : install

Cleanning directory /opt/dsc...

Cleaned up existing dsc_hosts...

Unpacking omsconfig (1.3.0.0) ...

Setting up omsconfig (1.3.0.0) ...

Using python3

Running python3, python version is , python3

VERBOSE from InstallModule.py: Extracting module zip file from /opt/microsoft/omsconfig/module_packages/nx_1.5.zip to /opt/microsoft/omsconfig/modules

VERBOSE from InstallModule.py: Installing resource MSFT_nxGroupResource

VERBOSE from InstallModule.py: Updated permissions of file: /opt/omi/lib/libMSFT_nxGroupResource_root-oms.so to 0o644

VERBOSE from InstallModule.py: Updated permissions of file: /opt/dsc/lib/MSFT_nxGroupResource/libMSFT_nxGroupResource.so to 0o644

VERBOSE from InstallModule.py: Updated permissions of file: /etc/opt/omi/conf/omiregister/root-oms/MSFT_nxGroupResource.reg to 0o644

VERBOSE from InstallModule.py: Installing resource MSFT_nxAvailableUpdatesResource

VERBOSE from InstallModule.py: Updated permissions of file: /opt/omi/lib/libMSFT_nxAvailableUpdatesResource_root-oms.so to 0o644

VERBOSE from InstallModule.py: Updated permissions of file: /opt/dsc/lib/MSFT_nxAvailableUpdatesResource/libMSFT_nxAvailableUpdatesResource.so to 0o644

VERBOSE from InstallModule.py: Updated permissions of file: /etc/opt/omi/conf/omiregister/root-oms/MSFT_nxAvailableUpdatesResource.reg to 0o644

VERBOSE from InstallModule.py: Installing resource MSFT_nxPackageResource

VERBOSE from InstallModule.py: Updated permissions of file: /opt/omi/lib/libMSFT_nxPackageResource_root-oms.so to 0o644

VERBOSE from InstallModule.py: Updated permissions of file: /opt/dsc/lib/MSFT_nxPackageResource/libMSFT_nxPackageResource.so to 0o644

VERBOSE from InstallModule.py: Updated permissions of file: /etc/opt/omi/conf/omiregister/root-oms/MSFT_nxPackageResource.reg to 0o644

VERBOSE from InstallModule.py: Installing resource MSFT_nxUserResource

VERBOSE from InstallModule.py: Updated permissions of file: /opt/omi/lib/libMSFT_nxUserResource_root-oms.so to 0o644

VERBOSE from InstallModule.py: Updated permissions of file: /opt/dsc/lib/MSFT_nxUserResource/libMSFT_nxUserResource.so to 0o644

VERBOSE from InstallModule.py: Updated permissions of file: /etc/opt/omi/conf/omiregister/root-oms/MSFT_nxUserResource.reg to 0o644

VERBOSE from InstallModule.py: Installing resource MSFT_nxServiceResource

VERBOSE from InstallModule.py: Updated permissions of file: /opt/omi/lib/libMSFT_nxServiceResource_root-oms.so to 0o644

VERBOSE from InstallModule.py: Updated permissions of file: /opt/dsc/lib/MSFT_nxServiceResource/libMSFT_nxServiceResource.so to 0o644

VERBOSE from InstallModule.py: Updated permissions of file: /etc/opt/omi/conf/omiregister/root-oms/MSFT_nxServiceResource.reg to 0o644

The result code is 0

VERBOSE from InstallModule.py: Extracting module zip file from /opt/microsoft/omsconfig/module_packages/nxOMSPerfCounter_2.3.zip to /opt/microsoft/omsconfig/modules

VERBOSE from InstallModule.py: Installing resource MSFT_nxOMSPerfCounterResource

VERBOSE from InstallModule.py: Updated permissions of file: /opt/omi/lib/libMSFT_nxOMSPerfCounterResource_root-oms.so to 0o644

VERBOSE from InstallModule.py: Updated permissions of file: /opt/dsc/lib/MSFT_nxOMSPerfCounterResource/libMSFT_nxOMSPerfCounterResource.so to 0o644

VERBOSE from InstallModule.py: Updated permissions of file: /etc/opt/omi/conf/omiregister/root-oms/MSFT_nxOMSPerfCounterResource.reg to 0o644

The result code is 0

VERBOSE from InstallModule.py: Extracting module zip file from /opt/microsoft/omsconfig/module_packages/nxOMSSyslog_2.5.zip to /opt/microsoft/omsconfig/modules

VERBOSE from InstallModule.py: Installing resource MSFT_nxOMSSyslogResource

VERBOSE from InstallModule.py: Updated permissions of file: /opt/omi/lib/libMSFT_nxOMSSyslogResource_root-oms.so to 0o644

VERBOSE from InstallModule.py: Updated permissions of file: /opt/dsc/lib/MSFT_nxOMSSyslogResource/libMSFT_nxOMSSyslogResource.so to 0o644

VERBOSE from InstallModule.py: Updated permissions of file: /etc/opt/omi/conf/omiregister/root-oms/MSFT_nxOMSSyslogResource.reg to 0o644

The result code is 0

VERBOSE from InstallModule.py: Extracting module zip file from /opt/microsoft/omsconfig/module_packages/nxOMSSudoCustomLog_2.8.zip to /opt/microsoft/omsconfig/modules

VERBOSE from InstallModule.py: Installing resource MSFT_nxOMSSudoCustomLogResource

VERBOSE from InstallModule.py: Updated permissions of file: /opt/omi/lib/libMSFT_nxOMSSudoCustomLogResource_root-oms.so to 0o644

VERBOSE from InstallModule.py: Updated permissions of file: /opt/dsc/lib/MSFT_nxOMSSudoCustomLogResource/libMSFT_nxOMSSudoCustomLogResource.so to 0o644

VERBOSE from InstallModule.py: Updated permissions of file: /etc/opt/omi/conf/omiregister/root-oms/MSFT_nxOMSSudoCustomLogResource.reg to 0o644

The result code is 0

VERBOSE from InstallModule.py: Extracting module zip file from /opt/microsoft/omsconfig/module_packages/nxOMSKeyMgmt_1.0.zip to /opt/microsoft/omsconfig/modules

VERBOSE from InstallModule.py: Installing resource MSFT_nxOMSKeyMgmtResource

VERBOSE from InstallModule.py: Updated permissions of file: /opt/omi/lib/libMSFT_nxOMSKeyMgmtResource_root-oms.so to 0o644

VERBOSE from InstallModule.py: Updated permissions of file: /opt/dsc/lib/MSFT_nxOMSKeyMgmtResource/libMSFT_nxOMSKeyMgmtResource.so to 0o644

VERBOSE from InstallModule.py: Updated permissions of file: /etc/opt/omi/conf/omiregister/root-oms/MSFT_nxOMSKeyMgmtResource.reg to 0o644

The result code is 0

VERBOSE from InstallModule.py: Extracting module zip file from /opt/microsoft/omsconfig/module_packages/nxFileInventory_1.4.zip to /opt/microsoft/omsconfig/modules

VERBOSE from InstallModule.py: Installing resource MSFT_nxFileInventoryResource

VERBOSE from InstallModule.py: Updated permissions of file: /opt/omi/lib/libMSFT_nxFileInventoryResource_root-oms.so to 0o644

VERBOSE from InstallModule.py: Updated permissions of file: /opt/dsc/lib/MSFT_nxFileInventoryResource/libMSFT_nxFileInventoryResource.so to 0o644

VERBOSE from InstallModule.py: Updated permissions of file: /etc/opt/omi/conf/omiregister/root-oms/MSFT_nxFileInventoryResource.reg to 0o644

The result code is 0

VERBOSE from InstallModule.py: Extracting module zip file from /opt/microsoft/omsconfig/module_packages/nxOMSGenerateInventoryMof_1.5.zip to /opt/microsoft/omsconfig/modules

VERBOSE from InstallModule.py: Installing resource MSFT_nxOMSGenerateInventoryMofResource

VERBOSE from InstallModule.py: Updated permissions of file: /opt/omi/lib/libMSFT_nxOMSGenerateInventoryMofResource_root-oms.so to 0o644

VERBOSE from InstallModule.py: Updated permissions of file: /opt/dsc/lib/MSFT_nxOMSGenerateInventoryMofResource/libMSFT_nxOMSGenerateInventoryMofResource.so to 0o644

VERBOSE from InstallModule.py: Updated permissions of file: /etc/opt/omi/conf/omiregister/root-oms/MSFT_nxOMSGenerateInventoryMofResource.reg to 0o644

The result code is 0

gpg: keybox '/etc/opt/omi/conf/omsconfig/keymgmtring.gpg' created

gpg: directory '/etc/opt/omi/conf/omsconfig/.gnupg' created

gpg: /etc/opt/omi/conf/omsconfig/.gnupg/trustdb.gpg: trustdb created

gpg: key C4EC49E544BC4178: public key "Microsoft (Release Signing) <[email protected]>" imported

gpg: Total number processed: 1

gpg:               imported: 1

gpg: keybox '/etc/opt/omi/conf/omsconfig/keyring.gpg' created

gpg: key 20541A3DDE321294: public key "Microsoft (Release Signing) <[email protected]>" imported

gpg: Total number processed: 1

gpg:               imported: 1

Reset ownership of files defined in /etc/sudoers.d/omsagent

Trying to stop omi with systemctl

omi is stopped.

Trying to start omi with systemctl

omi is started.

Using python3

Running python3

VERBOSE from OMS_MetaConfigHelper.py: OMS config path being read: /etc/opt/microsoft/omsagent/000000-1111-222222222-3333333333/conf/omsadmin.conf

VERBOSE from OMS_MetaConfigHelper.py: Output from3: /opt/microsoft/omsconfig/Scripts/python3/SetDscLocalConfigurationManager.py -configurationmof /etc/opt/omi/conf/omsconfig/generated_meta_config.mof: Opened the dsc host lock file at the path '/opt/dsc/dsc_host_lock'

[2024/03/25 15:30:28] [11122] [INFO] [0] [/opt/microsoft/omsconfig/Scripts/python3/SetDscLocalConfigurationManager.py:0] dsc_host lock file is acquired by : SendMetaConfigurationApply


Operation SendMetaConfigurationApply completed successfully.

Operation was successful.


Operation SendMetaConfigurationApply completed successfully.

Operation was successful.



VERBOSE from OMS_MetaConfigHelper.py: Successfully configured omsconfig.

Applying DSC nxOMSSyslog hotfix...

Trying to stop omi with systemctl

omi is stopped.

Trying to start omi with systemctl

omi is started.

----- Updating bundled provider packages -----

Checking if Apache is installed ...

  Apache not found, will not install

Checking if Docker is installed...

  Docker not found. Docker agent will not be installed.

Checking if MySQL is installed ...

  MySQL not found, will not install

Extracting...

Updating auoms ...

----- Updating package: auoms (auoms-2.5.2-52.universal.x64) -----

Selecting previously unselected package auoms.

(Reading database ... 84316 files and directories currently installed.)

Preparing to unpack auoms-2.5.2-52.universal.x64.deb ...

Unpacking auoms (2.5.2.52) ...

Setting up auoms (2.5.2.52) ...

OMS Troubleshooter is installed.

You can run the Troubleshooter with the following command:

  $ sudo /opt/microsoft/omsagent/bin/troubleshooter

OMS agent shell bundle exiting with status code 0

-e The Log Analytics agent is on a deprecation path and won't be supported after August 31, 2024. If you use the Log Analytics agent to ingest data to Azure Monitor, make sure to migrate to the new Azure Monitor agent (https://docs.microsoft.com/en-us/azure/azure-monitor/agents/azure-monitor-agent-migration) prior to that date.


Other commands:

  • apt install python2
  • sudo su omsagent -c 'python2 /opt/microsoft/omsconfig/Scripts/OMS_MetaConfigHelper.py --disable'


root@NSTEST-syslog:~# cat /etc/rsyslog.d/95-omsagent.conf
# OMS Syslog collection for workspace 000000-1111-222222222-3333333333
root@NSTEST-syslog:~# netstat
Active Internet connections (w/o servers)
Proto Recv-Q Send-Q Local Address           Foreign Address         State
tcp        0    240 NSTEST-syslog.communit:ssh ECOR-ITLT-17.comm:64202 ESTABLISHED
tcp        0      0 NSTEST-syslog.commun:56794 40.71.12.254:https      TIME_WAIT
Active UNIX domain sockets (w/o servers)
Proto RefCnt Flags       Type       State         I-Node   Path
unix  2      [ ]         DGRAM                    646443   /run/user/1000/systemd/notify
unix  3      [ ]         DGRAM      CONNECTED     19355    /run/systemd/notify


2 Create Meraki and vCenter Conf files

root@NSTEST-syslog:~# sudo netstat -tulnp | grep ruby
udp        0      0 127.0.0.1:25224         0.0.0.0:*                           10643/ruby
root@NSTEST-syslog:~# wget -v https://aka.ms/sentinel-ciscomerakioms-conf -O meraki.conf
--2024-03-25 15:35:24--  https://aka.ms/sentinel-ciscomerakioms-conf
Resolving aka.ms (aka.ms)... 23.46.202.180
Connecting to aka.ms (aka.ms)|23.46.202.180|:443... connected.
HTTP request sent, awaiting response... 301 Moved Permanently
Location: https://raw.githubusercontent.com/Azure/Azure-Sentinel/master/Solutions/CiscoMeraki/Data%20Connectors/la_agent_configs/meraki.conf [following]
--2024-03-25 15:35:25--  https://raw.githubusercontent.com/Azure/Azure-Sentinel/master/Solutions/CiscoMeraki/Data%20Connectors/la_agent_configs/meraki.conf
Resolving raw.githubusercontent.com (raw.githubusercontent.com)... 185.199.108.133, 185.199.111.133, 185.199.109.133, ...
Connecting to raw.githubusercontent.com (raw.githubusercontent.com)|185.199.108.133|:443... connected.
HTTP request sent, awaiting response... 200 OK
Length: 688 [text/plain]
Saving to: ‘meraki.conf’
meraki.conf                                                 100%[========================================================================================================================================>]     688  --.-KB/s    in 0s
2024-03-25 15:35:25 (93.0 MB/s) - ‘meraki.conf’ saved [688/688]
root@NSTEST-syslog:~# ls
meraki.conf  omsagent-1.19.0-0.universal.x64.sh  onboard_agent.sh  snap
root@NSTEST-syslog:~# vi meraki.conf
root@NSTEST-syslog:~# cat meraki.conf
<source>
  type tcp
  format none
  port 22033
  bind 0.0.0.0
  delimiter "\n"
  tag oms.api.meraki
</source>
<match oms.api.meraki>
  type out_oms_api
  log_level info
  num_threads 5
  omsadmin_conf_path /etc/opt/microsoft/omsagent/000000-1111-222222222-3333333333/conf/omsadmin.conf
  cert_path /etc/opt/microsoft/omsagent/000000-1111-222222222-3333333333/certs/oms.crt
  key_path /etc/opt/microsoft/omsagent/000000-1111-222222222-3333333333/certs/oms.key
  buffer_chunk_limit 10m
  buffer_type file
  buffer_path /var/opt/microsoft/omsagent/000000-1111-222222222-3333333333/state/out_oms_api_meraki*.buffer
  buffer_queue_limit 10
  buffer_queue_full_action drop_oldest_chunk
  flush_interval 30s
  retry_limit 10
  retry_wait 30s
  max_retry_wait 9m
</match>
root@NSTEST-syslog:~# sudo wget -v https://aka.ms/sentinel-vcenteroms-conf -O vcenter.conf
--2024-03-25 15:37:29--  https://aka.ms/sentinel-vcenteroms-conf
Resolving aka.ms (aka.ms)... 23.197.182.37
Connecting to aka.ms (aka.ms)|23.197.182.37|:443... connected.
HTTP request sent, awaiting response... 301 Moved Permanently
Location: https://raw.githubusercontent.com/Azure/Azure-Sentinel/master/Solutions/VMware%20vCenter/Data%20Connectors/la_agent_configs/vcenter.conf [following]
--2024-03-25 15:37:29--  https://raw.githubusercontent.com/Azure/Azure-Sentinel/master/Solutions/VMware%20vCenter/Data%20Connectors/la_agent_configs/vcenter.conf
Resolving raw.githubusercontent.com (raw.githubusercontent.com)... 185.199.108.133, 185.199.110.133, 185.199.111.133, ...
Connecting to raw.githubusercontent.com (raw.githubusercontent.com)|185.199.108.133|:443... connected.
HTTP request sent, awaiting response... 200 OK
Length: 690 [text/plain]
Saving to: ‘vcenter.conf’
vcenter.conf                                                100%[========================================================================================================================================>]     690  --.-KB/s    in 0s
2024-03-25 15:37:30 (82.8 MB/s) - ‘vcenter.conf’ saved [690/690]
root@NSTEST-syslog:~# ls
meraki.conf  omsagent-1.19.0-0.universal.x64.sh  onboard_agent.sh  snap  vcenter.conf
root@NSTEST-syslog:~# vi vcenter.conf
root@NSTEST-syslog:~# cat vcenter.conf
<source>
  type tcp
  format none
  port 23033
  bind 0.0.0.0
  delimiter "\n"
  tag oms.api.vcenter
</source>
<match oms.api.vcenter>
  type out_oms_api
  log_level info
  num_threads 5
  omsadmin_conf_path /etc/opt/microsoft/omsagent/000000-1111-222222222-3333333333/conf/omsadmin.conf
  cert_path /etc/opt/microsoft/omsagent/000000-1111-222222222-3333333333/certs/oms.crt
  key_path /etc/opt/microsoft/omsagent/000000-1111-222222222-3333333333/certs/oms.key
  buffer_chunk_limit 10m
  buffer_type file
  buffer_path /var/opt/microsoft/omsagent/000000-1111-222222222-3333333333/state/out_oms_api_vcenter*.buffer
  buffer_queue_limit 10
  buffer_queue_full_action drop_oldest_chunk
  flush_interval 30s
  retry_limit 10
  retry_wait 30s
  max_retry_wait 9m
</match>
root@NSTEST-syslog:~# sudo cp *.conf /etc/opt/microsoft/omsagent/000000-1111-222222222-3333333333/conf/omsagent.d/
root@NSTEST-syslog:~# sudo /opt/microsoft/omsagent/bin/service_control restart


3 Change rsyslog conf file



root@NSTEST-syslog:~# sudo netstat -tulnp | grep ruby
tcp        0      0 0.0.0.0:22033           0.0.0.0:*               LISTEN      12080/ruby
tcp        0      0 0.0.0.0:23033           0.0.0.0:*               LISTEN      12080/ruby
udp        0      0 127.0.0.1:25224         0.0.0.0:*                           12080/ruby
root@NSTEST-syslog:~# vi /etc/rsyslog.conf
root@NSTEST-syslog:~# vi /etc/rsyslog.conf
root@NSTEST-syslog:~# cat /etc/rsyslog.conf
# /etc/rsyslog.conf configuration file for rsyslog
#
# For more information install rsyslog-doc and see
# /usr/share/doc/rsyslog-doc/html/configuration/index.html
#
# Default logging rules can be found in /etc/rsyslog.d/50-default.conf

#################
#### MODULES ####
#################
module(load="imuxsock") # provides support for local system logging
#module(load="immark")  # provides --MARK-- message capability
# provides UDP syslog reception
module(load="imudp")
input(type="imudp" port="514")
# provides TCP syslog reception
module(load="imtcp")
input(type="imtcp" port="514")
input(type="imudp" port="1514" name="udp_meraki")
input(type="imudp" port="2514" name="udp_vcenter")
input(type="imtcp" port="1514" name="tcp_meraki")
input(type="imtcp" port="2514" name="tcp_vcenter")
$template meraki,"%timestamp% %hostname% %msg%"
$template vcenter,"%timestamp% %hostname% %msg%"

# provides kernel logging support and enable non-kernel klog messages
module(load="imklog" permitnonkernelfacility="on")
###########################
#### GLOBAL DIRECTIVES ####
###########################
#
# Use traditional timestamp format.
# To enable high precision timestamps, comment out the following line.
#
$ActionFileDefaultTemplate RSYSLOG_TraditionalFileFormat
# Filter duplicated messages
$RepeatedMsgReduction on
#
# Set the default permissions for all log files.
#
$FileOwner syslog
$FileGroup adm
$FileCreateMode 0640
$DirCreateMode 0755
$Umask 0022
$PrivDropToUser syslog
$PrivDropToGroup syslog
#
# Where to place spool and state files
#
$WorkDirectory /var/spool/rsyslog
#
# Include all config files in /etc/rsyslog.d/
#
$IncludeConfig /etc/rsyslog.d/*.conf
root@NSTEST-syslog:~# cd /etc/rsyslog.d/
root@NSTEST-syslog:/etc/rsyslog.d# ls
20-ufw.conf  21-cloudinit.conf  50-default.conf  95-omsagent.conf
root@NSTEST-syslog:/etc/rsyslog.d# vi 10-vcenter.conf
root@NSTEST-syslog:/etc/rsyslog.d# cat 10-vcenter.conf
#vCenter Logs
if ($inputname == 'udp_vcenter' or $inputname == 'tcp_vcenter') then @@127.0.0.1:23033;vcenter


4 Restart services and verify ports



root@NSTEST-syslog:/etc/rsyslog.d# systemctl restart rsyslog
root@NSTEST-syslog:/etc/rsyslog.d# systemctl status resyslog
Unit resyslog.service could not be found.
root@NSTEST-syslog:/etc/rsyslog.d# systemctl status rsyslog
● rsyslog.service - System Logging Service
     Loaded: loaded (/lib/systemd/system/rsyslog.service; enabled; vendor preset: enabled)
     Active: active (running) since Mon 2024-03-25 15:50:40 UTC; 12s ago
TriggeredBy: ● syslog.socket
       Docs: man:rsyslogd(8)
             man:rsyslog.conf(5)
             https://www.rsyslog.com/doc/
   Main PID: 12586 (rsyslogd)
      Tasks: 12 (limit: 9388)
     Memory: 1.8M
        CPU: 4ms
     CGroup: /system.slice/rsyslog.service
             └─12586 /usr/sbin/rsyslogd -n -iNONE
Mar 25 15:50:40 NSTEST-syslog systemd[1]: Starting System Logging Service...
Mar 25 15:50:40 NSTEST-syslog rsyslogd[12586]: imuxsock: Acquired UNIX socket '/run/systemd/journal/syslog' (fd 3) from systemd.  [v8.2112.0]
Mar 25 15:50:40 NSTEST-syslog systemd[1]: Started System Logging Service.
Mar 25 15:50:40 NSTEST-syslog rsyslogd[12586]: rsyslogd's groupid changed to 113
Mar 25 15:50:40 NSTEST-syslog rsyslogd[12586]: rsyslogd's userid changed to 107
Mar 25 15:50:40 NSTEST-syslog rsyslogd[12586]: [origin software="rsyslogd" swVersion="8.2112.0" x-pid="12586" x-info="https://www.rsyslog.com"] start
root@NSTEST-syslog:/etc/rsyslog.d#
root@NSTEST-syslog:/etc/rsyslog.d#
root@NSTEST-syslog:/etc/rsyslog.d# netstat -tulnp | grep 514
tcp        0      0 0.0.0.0:514             0.0.0.0:*               LISTEN      12586/rsyslogd
tcp        0      0 0.0.0.0:1514            0.0.0.0:*               LISTEN      12586/rsyslogd
tcp        0      0 0.0.0.0:2514            0.0.0.0:*               LISTEN      12586/rsyslogd
tcp6       0      0 :::514                  :::*                    LISTEN      12586/rsyslogd
tcp6       0      0 :::1514                 :::*                    LISTEN      12586/rsyslogd
tcp6       0      0 :::2514                 :::*                    LISTEN      12586/rsyslogd
udp        0      0 0.0.0.0:1514            0.0.0.0:*                           12586/rsyslogd
udp        0      0 0.0.0.0:2514            0.0.0.0:*                           12586/rsyslogd
udp        0      0 0.0.0.0:514             0.0.0.0:*                           12586/rsyslogd
udp6       0      0 :::1514                 :::*                                12586/rsyslogd
udp6       0      0 :::2514                 :::*                                12586/rsyslogd
udp6       0      0 :::514                  :::*                                12586/rsyslogd
root@NSTEST-syslog:/etc/rsyslog.d#
root@NSTEST-syslog:~#


On Meraki:



For meraki device, you also can collect Wireless AP events as well. Current screenshot only shows Switch event log.


Install SOC Handbook Solution

The SOC Handbook solution for Microsoft Sentinel provides a collection of resources that enable and empower SOC Analysts to get better visibility and understanding of point-in-time security posture of organizational resources.



Checking cost for last 7 days:



Fortinet Devices (FortiGate)

Local Facility: Changed to Local 7



Log Filtering on Syslog Forwarder Server:

Note: "stop" option does not work, but ~ works.

Following configuration file is to stop priority 3 events coming into Sentinel

vi /etc/rsyslog.d/10-azuremonitoragent-omfwd.conf

# Azure Monitor Agent configuration: forward logs to azuremonitoragent
# Filter Fortinet logs
:msg, contains, "traffic:forward accept" ~
:msg, contains, "traffic:local accept" ~
:msg, contains, "traffic:forward start" ~
:msg, contains, "traffic:forward close" ~
:msg, contains, "traffic:forward server-rst" ~
:msg, contains, "traffic:forward timeout" ~
:msg, contains, "traffic:forward client-rst" ~
:msg, contains, "traffic:local close" stop
:msg, contains, "traffic:forward ip-conn" stop
:msg, contains, "traffic:local server-rst" stop
:msg, contains, "traffic:local client-rst" stop
:msg, contains, "utm:ssl ssl-anomaly" stop
:msg, contains, "traffic:local timeout" stop
:msg, contains, "event:switch-controller" stop
:msg, contains, "event:connector" stop
:msg, contains, "event:ha" stop
:msg, contains, "event:security-rating" stop
:msg, contains, "event:vpn failure" stop
:msg, contains, "event:vpn success" stop
:msg, contains, "event:system clash" stop
:msg, contains, "event:vpn negotiate_error" stop
:msg, contains, "event:vpn esp_error" stop
:msg, contains, "event:system update" stop
:msg, contains, "event:switch-controller none" stop
:msg, contains, "event:user logout" stop
:msg, contains, "utm:anomaly anomaly" stop
:msg, contains, "event:switch-controller None" stop
:msg, contains, "event:switch-controller down" stop
:msg, contains, "event:switch-controller up" stop
:msg, contains, "event:system success" stop
:msg, contains, "event:system failed" stop
:msg, contains, "event:vpn dpd_failure" stop
template(name="AMA_RSYSLOG_TraditionalForwardFormat" type="string" string="<%PRI%>%TIMESTAMP% %HOSTNAME% %syslogtag%%msg:::sp-if-no-1st-sp%%msg%")
# queue.workerThreads sets the maximum worker threads, it will scale back to 0 if there is no activity
# Forwarding all events through TCP port
*.* action(type="omfwd"
template="AMA_RSYSLOG_TraditionalForwardFormat"
queue.type="LinkedList"
queue.filename="omfwd-azuremonitoragent"
queue.maxFileSize="32m"
action.resumeRetryCount="-1"
action.resumeInterval="5"
action.reportSuspension="on"
action.reportSuspensionContinuation="on"
queue.size="25000"
queue.workerThreads="100"
queue.dequeueBatchSize="2048"
queue.saveonshutdown="on"
target="127.0.0.1" Port="28330" Protocol="tcp")



Replace /etc/rsyslog.d/10-azuremonitoragent-omfwd.conf file with above content. Do not forgot to restart rsyslog service:
  • systemctl start rsyslog
  • systemctl status rsyslog

Check the count of FortiGate events based on Priority and event name:

let Watchlist = datatable(Priority:string, Activity:string) [
'1','event:system',
'1','event:user',
'1','event:user logon',
'1','event:vpn',
'1','utm:anomaly',
'1','utm:dlp',
'1','utm:dlp dlp-docsource',
'1','utm:dns',
'1','utm:dns dns-query',
'1','utm:dns dns-response',
'1','utm:emailfilter',
'1','utm:emailfilter bannedword',
'1','utm:emailfilter spam',
'1','utm:emailfilter webmail',
'1','utm:ips',
'1','utm:ips botnet',
'1','utm:ips malicious-url',
'1','utm:ips signature',
'1','utm:ssh ssh-channel',
'1','utm:ssh ssh-command',
'1','utm:ssh ssh-hostkey',
'1','utm:waf',
'1','utm:waf waf-address-list',
'1','utm:waf waf-custom-signature',
'1','utm:waf waf-http-constraint',
'1','utm:waf waf-http-method',
'1','utm:waf waf-signature',
'1','utm:waf waf-url-access',
'2','event:cifs-auth-fail',
'2','event:endpoint',
'2','event:rest-api',
'2','event:router',
'2','event:sdwan',
'2','event:sdwan down',
'2','event:sdwan up',
'2','event:webproxy',
'2','event:wireless',
'2','traffic:forward deny',
'2','traffic:ztna',
'2','utm:app-ctrl' ,
'2','utm:app-ctrl port-violation',
'2','utm:app-ctrl protocol-violation',
'2','utm:app-ctrl signature',
'2','utm:file-filter',
'2','utm:virus',
'2','utm:virus analytics',
'2','utm:virus command-blocked',
'2','utm:virus content-disarm',
'2','utm:virus ems-threat-feed',
'2','utm:virus exempt-hash',
'2','utm:virus infected',
'2','utm:virus inline-block',
'2','utm:virus malware-list',
'2','utm:virus outbreak-prevention',
'2','utm:virus oversize',
'2','utm:voip',
'2','utm:webfilter',
'2','utm:webfilter ftgd_blk',
'2','utm:webfilter ftgd_err',
'2','utm:webfilter urlfilter',
'2','utm:webfilter webfilter_command_block',
'3','event:connector',
'3','event:fortiextender',
'3','event:ha',
'3','event:switch-controller',
'3','event:wanopt',
'3','traffic:forward',
'3','traffic:forward accept',
'3','traffic:forward client-rst',
'3','traffic:forward close',
'3','traffic:forward dns',
'3','traffic:forward ip-conn',
'3','traffic:forward server-rst',
'3','traffic:forward timeout',
'3','traffic:local',
'3','traffic:local accept',
'3','traffic:local client-rst',
'3','traffic:local close',
'3','traffic:local deny',
'3','traffic:local server-rst',
'3','traffic:local timeout',
'3','traffic:multicast',
'3','traffic:sniffer',
'3','utm:casb',
'3','utm:emailfilter email',
'3','utm:emailfilter ftgd_err',
'3','utm:forti-switch',
'3','utm:forti-switch fsw-flow',
'3','utm:gtp',
'3','utm:gtp gtp-all',
'3','utm:gtp pfcp-all',
'3','utm:icap',
'3','utm:ssl ssl-anomaly',
'3','utm:ssl ssl-exempt',
'3','utm:ssl ssl-handshake',
'3','utm:ssl ssl-negotiation',
'3','utm:ssl ssl-server-cert-info',
'3','utm:virtual-patch',
'3','utm:virus filename',
'3','utm:virus filetype-executable',
'3','utm:virus mimefragmented',
'3','utm:virus scanerror',
'3','utm:virus switchproto',
'3','utm:webfilter activexfilter',
'3','utm:webfilter antiphishing',
'3','utm:webfilter appletfilter',
'3','utm:webfilter content',
'3','utm:webfilter cookiefilter',
'3','utm:webfilter ftgd_allow',
'3','utm:webfilter ftgd_quota',
'3','utm:webfilter ftgd_quota_counting',
'3','utm:webfilter ftgd_quota_expired',
'3','utm:webfilter http_header_change',
'3','utm:webfilter scriptfilter',
'3','utm:webfilter ssl-exempt',
'3','utm:webfilter unknown-ce',
'3','utm:webfilter urlmonitor',
'3','utm:webfilter videofilter-category',
'3','utm:webfilter videofilter-channel',
'3','event:security-rating'
];
CommonSecurityLog
| where DeviceVendor contains "Forti"
| summarize TotalActivity = count() by Activity
| lookup Watchlist on Activity



Tcpdump command:
  • sudo tcpdump -i any dst port 28330 -Ann | grep "traffic:forward accept"



SonicWall

Local Facility: Changed to Local 7



Log Filtering on Syslog Forwarder Server:

Note: "stop" option does not work, but ~ works.

Following configuration file is to stop Connection Closed and Connection Opened events coming into Sentinel

vi /etc/rsyslog.d/10-azuremonitoragent-omfwd.conf

:msg, contains, "Connection Opened" ~
:msg, contains, "Connection Closed" ~




Nutanix

Log into server then type following example commands:
  • ncli
  • rsyslog-config set-status enable=false
  • rsyslog-config add-server name=ns-syslog ip-address=10.1.1.135 port=-514 network-protocol=udp relp-enabled=false
  • rsyslog-config list-modules server-name=ns-syslog
  • rsyslog-conbfig add-module server-name=ns-syslog module-name=audit level=info
  • rsyslog-config set-status enable=true
The configuraiton will be automatically copied to other cluster members.



SentinelOne

Configuration

NOTE: This connector uses Azure Functions to connect to the SentinelOne API to pull its logs into Microsoft Sentinel. This might result in additional data ingestion costs. Check the Azure Functions pricing page for details.

(Optional Step) Securely store workspace and API authorization key(s) or token(s) in Azure Key Vault. Azure Key Vault provides a secure mechanism to store and retrieve key values. Follow these instructions to use Azure Key Vault with an Azure Function App.

NOTE: This data connector depends on a parser based on a Kusto Function to work as expected which is deployed as part of the solution. To view the function code in Log Analytics, open Log Analytics/Microsoft Sentinel Logs blade, click Functions and search for the alias SentinelOne and load the function code or click here. The function usually takes 10-15 minutes to activate after solution installation/update.


STEP 1 - Configuration steps for the SentinelOne API

Follow the instructions to obtain the credentials.

  1. Log in to the SentinelOne Management Console with Admin user credentials.
  2. In the Management Console, click Settings.
  3. In the SETTINGS view, click USERS
  4. Click New User.
  5. Enter the information for the new console user.
  6. In Role, select Admin.
  7. Click SAVE
  8. Save credentials of the new user for using in the data connector.

STEP 2 - Choose ONE from the following two deployment options to deploy the connector and the associated Azure Function

IMPORTANT: Before deploying the SentinelOne data connector, have the Workspace ID and Workspace Primary Key

Option 2 - Manual Deployment of Azure Functions

Use the following step-by-step instructions to deploy the SentinelOne Reports data connector manually with Azure Functions (Deployment via Visual Studio Code).

1. Deploy a Function App

NOTE: You will need to prepare VS code for Azure function development.

  1. Download the Azure Function App file. Extract archive to your local development computer.

  2. Start VS Code. Choose File in the main menu and select Open Folder.

  3. Select the top level folder from extracted files.

  4. Choose the Azure icon in the Activity bar, then in the Azure: Functions area, choose the Deploy to function app button.
    If you aren't already signed in, choose the Azure icon in the Activity bar, then in the Azure: Functions area, choose Sign in to Azure
    If you're already signed in, go to the next step.

  5. Provide the following information at the prompts:

    a. Select folder: Choose a folder from your workspace or browse to one that contains your function app.

    b. Select Subscription: Choose the subscription to use.

    c. Select Create new Function App in Azure (Don't choose the Advanced option)

    d. Enter a globally unique name for the function app: Type a name that is valid in a URL path. The name you type is validated to make sure that it's unique in Azure Functions. (e.g. SOneXXXXX).

    e. Select a runtime: Choose Python 3.8.

    f. Select a location for new resources. For better performance and lower costs choose the same region where Microsoft Sentinel is located.

  6. Deployment will begin. A notification is displayed after your function app is created and the deployment package is applied.

  7. Go to Azure Portal for the Function App configuration.

2. Configure the Function App

  1. In the Function App, select the Function App Name and select Configuration.

  2. In the Application settings tab, select ** New application setting**.

  3. Add each of the following application settings individually, with their respective string values (case-sensitive):
    SentinelOneAPIToken
    SentinelOneUrl
    WorkspaceID
    WorkspaceKey
    logAnalyticsUri (optional)

  • Use logAnalyticsUri to override the log analytics API endpoint for dedicated cloud. For example, for public cloud, leave the value empty; for Azure GovUS cloud environment, specify the value in the following format: https://<CustomerId>.ods.opinsights.azure.us.
  1. Once all application settings have been entered, click Save.

Issue 1:

"Connectors queries got the following errors
Connector: 'SentinelOne (using Azure Functions)'. The query used for connectivity check is invalid:
'The request had some invalid properties': 'Detected multiple functions with the same name: 'SentinelOne'. Resolve the conflict to allow these functions to be used in a query.'

 Please try again. If you continue to receive this error message, contact Microsoft support.
"


Test Logs


logger -p local4.warn -P 514 -n 127.0.0.1 --rfc3164 -t CEF "0|TestCommonEventFormat|MOCK|common=event-format-test|end|TRAFFIC|1|rt=$common=event-formatted-receive_time deviceExternalId=0002D01655 src=1.1.1.1 dst=2.2.2.2 sourceTranslatedAddress=1.1.1.1 destinationTranslatedAddress=3.3.3.3 cs1Label=Rule cs1=CEF_TEST_InternetDNS"


logger -p local4.warn -d -n 127.0.0.1 -P 514 "SYSLOG TEST FROM NETSEC"

No comments:

Post a Comment
